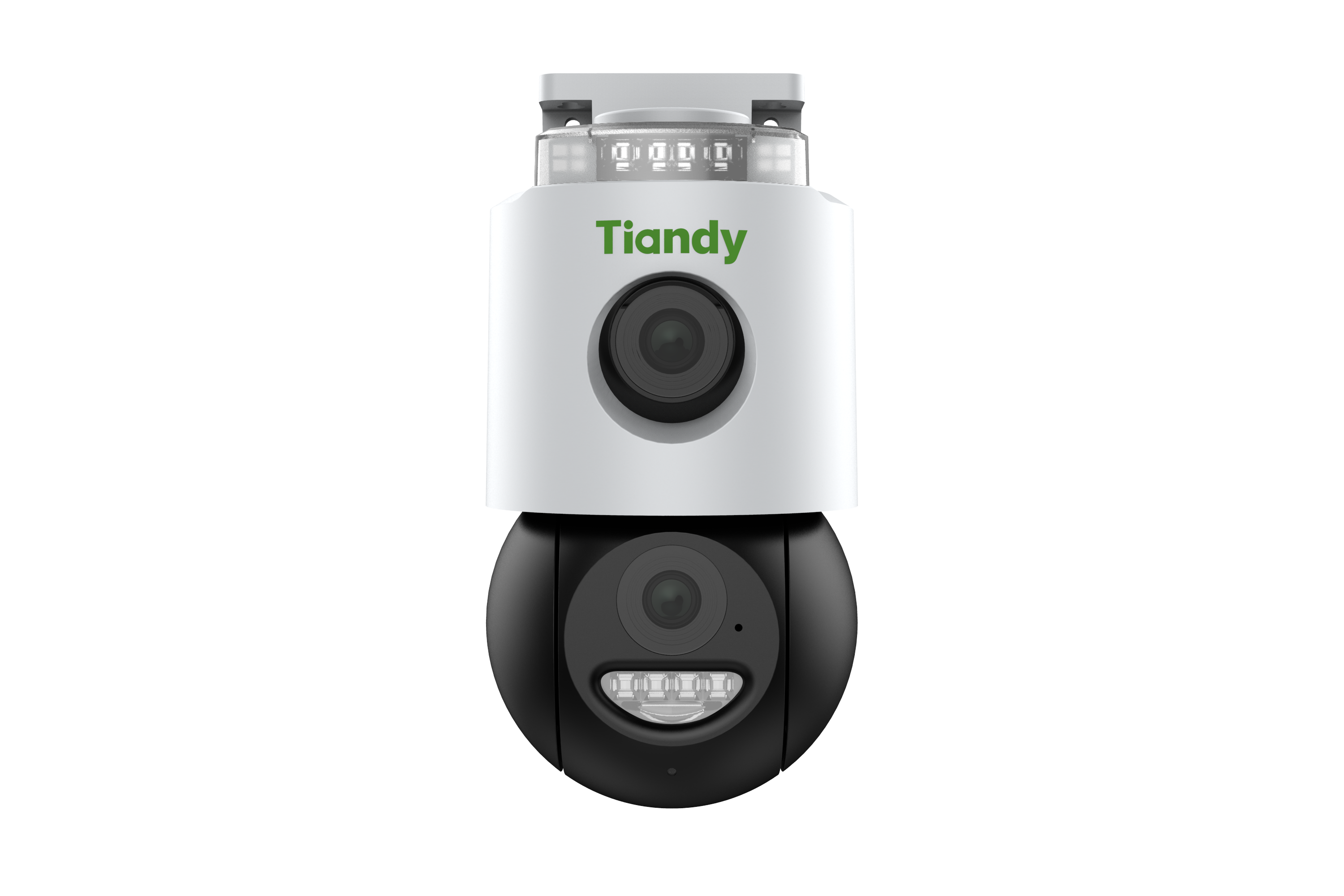

3MP+3MP Dual Lens WiFi PT Camera

Image Sensor

1/3″CMOS

Min. Illumination

Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR

Shutter Time

1s~1/100000s

Day&Night

IR-cut filter with auto switch (ICR)

WDR

DWDR

S/N

>40dB

Angle Adjustment

(P)Fixde Lens: -60°~60°, Pan & Tilt Lens: 0~345°;
(T)Fixde Lens: 5°-15°, Pan & Tilt Lens: -15~90°;
(R)Fixde Lens: 0°, Pan & Tilt Lens: 0°

Lens

Lens Type

Fixed

Focal Length

4mm/4mm

Lens Mount

M12/M12

Aperture Range

F1.6/F1.6,fixed focal lens

Field of View

(H)Fixde Lens:81.3°; Pan & Tilt Lens:81.3°
(V)Fixde Lens:44.4°; Pan & Tilt Lens:44.4°
(D)Fixde Lens:94.4°; Pan & Tilt Lens:94.4°

DORI Distance

Fixde Lens:Detect: 59.26m; Observe:23.52m; Recognize:11.85m; Identify:5.93m
Pan & Tilt Lens:Detect: 59.26m; Observe:23.52m; Recognize:11.85m; Identify:5.93m

Illuminator

IR LEDs

4+4

IR Distance

30m

Wavelength

850nm

White LEDs

4+4

Whitelight Distance

15m

Compression Standard

Video Compression

S+265/H.265/H.264B/H.264M/H.264H

Video Bit Rate

Fixde Lens:32k~4Mbps
Pan & Tilt Lens:32k~4Mbps

Audio Compression

G.711A/G.711U

Audio Sampling Rate

8kHz/16kHz


Max. Resolution

2304×1296@15fps

Main Stream

Fixde Lens
PAL:15fps(2304×1296,1920×1080,1280×720,640×480,704×576)
NTSC:15fps(2304×1296,1920×1080,1280×720,640×480,704×480)
Pan & Tilt Lens:
PAL:15fps(2304×1296,1920×1080,1280×720,640×480,704×576)
NTSC:15fps(2304×1296,1920×1080,1280×720,640×480,704×480)

Sub Stream

Fixde Lens:
PAL:15fps(704×576,704×288,640×360,352×288)
NTSC:15fps(704×480,704×240,640×360,352×240)
Pan & Tilt Lens:
PAL:15fps(704×576,704×288,640×360,352×288)
NTSC:15fps(704×480,704×240,640×360,352×240)

Third Stream

N/A

BLC

Yes

HLC

Yes

AGC

Yes

3D DNR

Yes

White Balance

Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance

ROI

N/A

Corridor mode

N/A

EIS

N/A

OSD

Overlay of additional characters in one area, 1 line, up to 48 characters or 16 Chinese characters;16*16/32*32/48*48

Picture Overlay

N/A

Privacy Mask

4 black static areas

Defog

Yes

Feature

Alarm Trigger

Voltage Alarm;Disk Full;Disk R/W Error;IP Address Conflict

Video Analytics

N/A

Rules of behavior analyse in 1 scene

N/A

Early Warning(EW)

N/A

Auto-Tracking

Auto-Tracking

Face Mode

N/A

Face Detection Performance

N/A

Linkage Method

trigger sound;trigger recording;trigger capture;notify surveillance center

Network

ANR

Yes

Protocols

HTTP;TCP/IP;UDP;ICMP;DHCP;DNS;NTP;IPv4;SSH;Unicast;FTP

System Compatibility

P2P;CGI

Remote Connection

≤2

Client

Easy7 Smart Client

Moblie Client

EasyLive Plus

Web

IE10+;Firefox52+;Edge89+;Safari11+;Chrome57+

Interface

Communication Interface

1*RJ-45,10/100 Mbps self-adaptive Ethernet port

Audio I/O

N/A

Alarm I/O

N/A

Built-In Mic

Yes

Built-In Speaker

Yes

Reset Button

Yes

On-board storage

Support microSD/microSDHC/microSDXC card, up to 512 GB

Additional interfaces

N/A

General

Web Client Language

3languages
Simple Chinese/English/Vietnamese

Operating Temperature

-30℃~60℃(No turning on the light)

Operating Humidity

Humidity 95% or less (no condensation)

Storage Temperature

-30℃~60℃

Storage Humidity

Humidity 95% or less (no condensation)

Power Supply

DC12V±25%

Protection

Surge2000V;ESD6000V;IP66

Boundary Dimensions

133(L)102W)209(H)mm

Package Dimensions

160(L)160(W)205(H)mm

GrossWeight

0.83kg

NetWeight

0.6kg
